Bridge Between Piers 4 and 5
| Engineer / Architect: | N/A |
|---|---|
| Location: |
Between Piers 4 and 5 Baltimore, MD |
| Year Built: | N/A |
| Structural Form: | Cable-stayed Girder Bridge |
| Historical Details: | N/A |

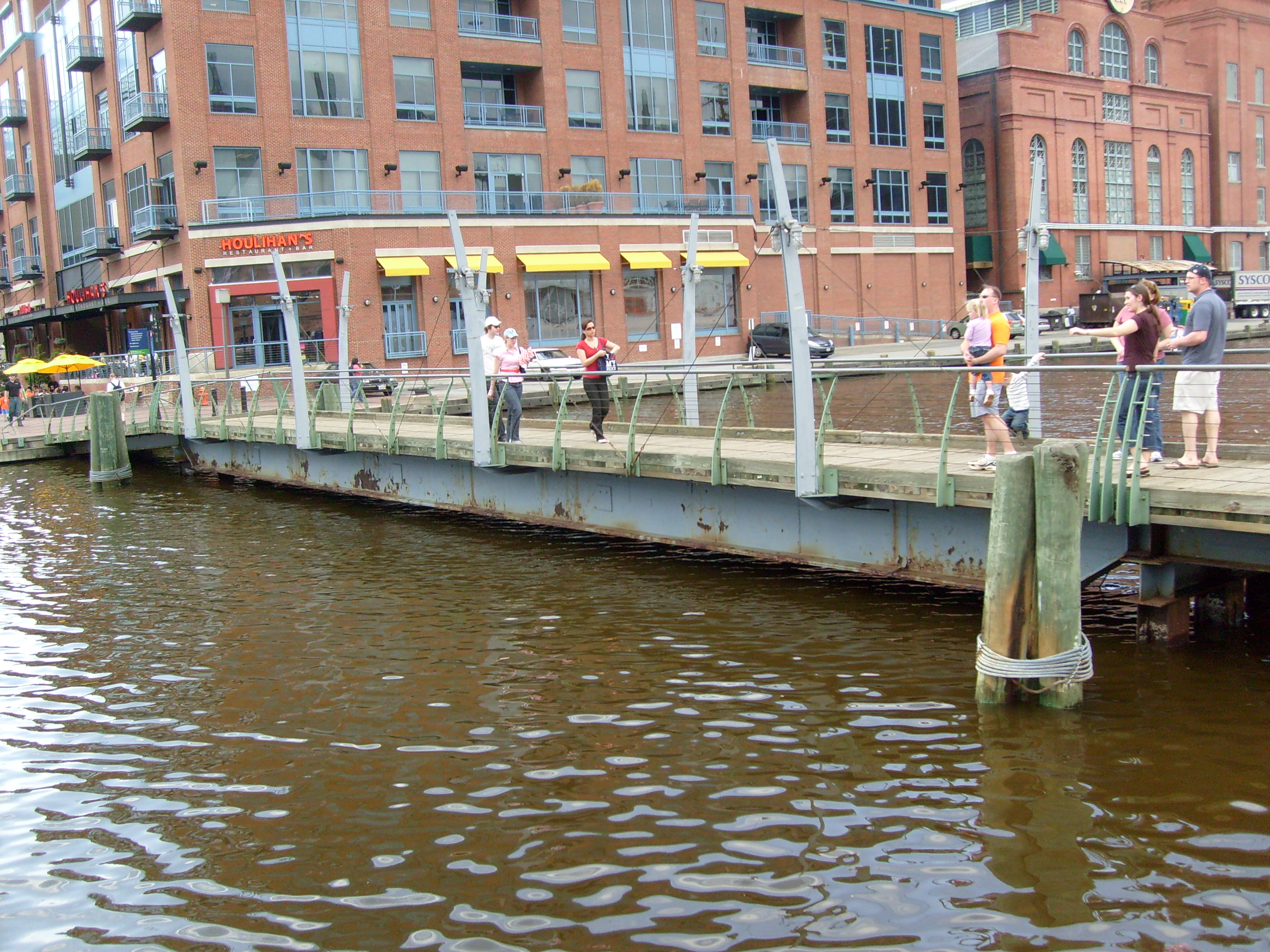

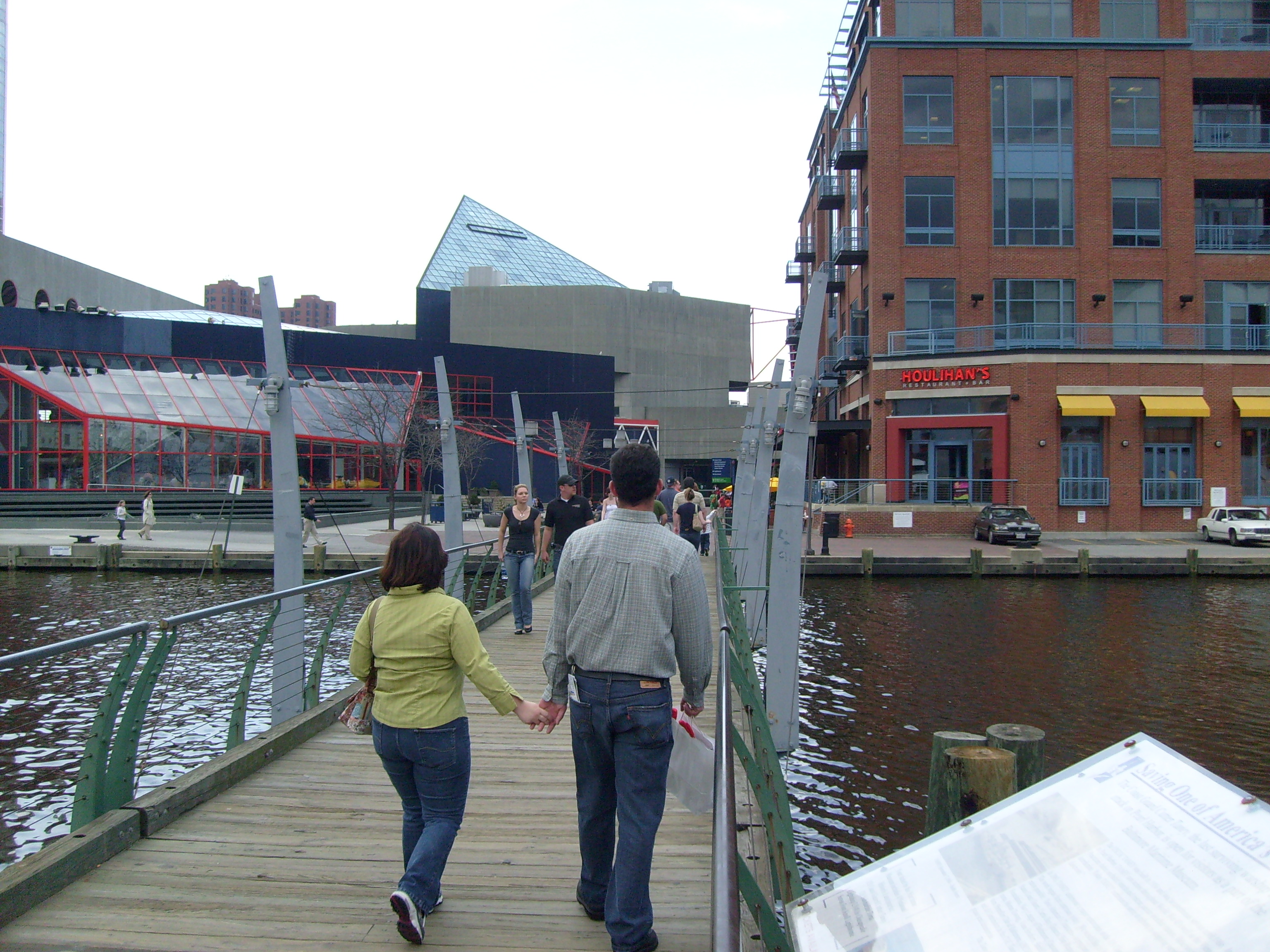

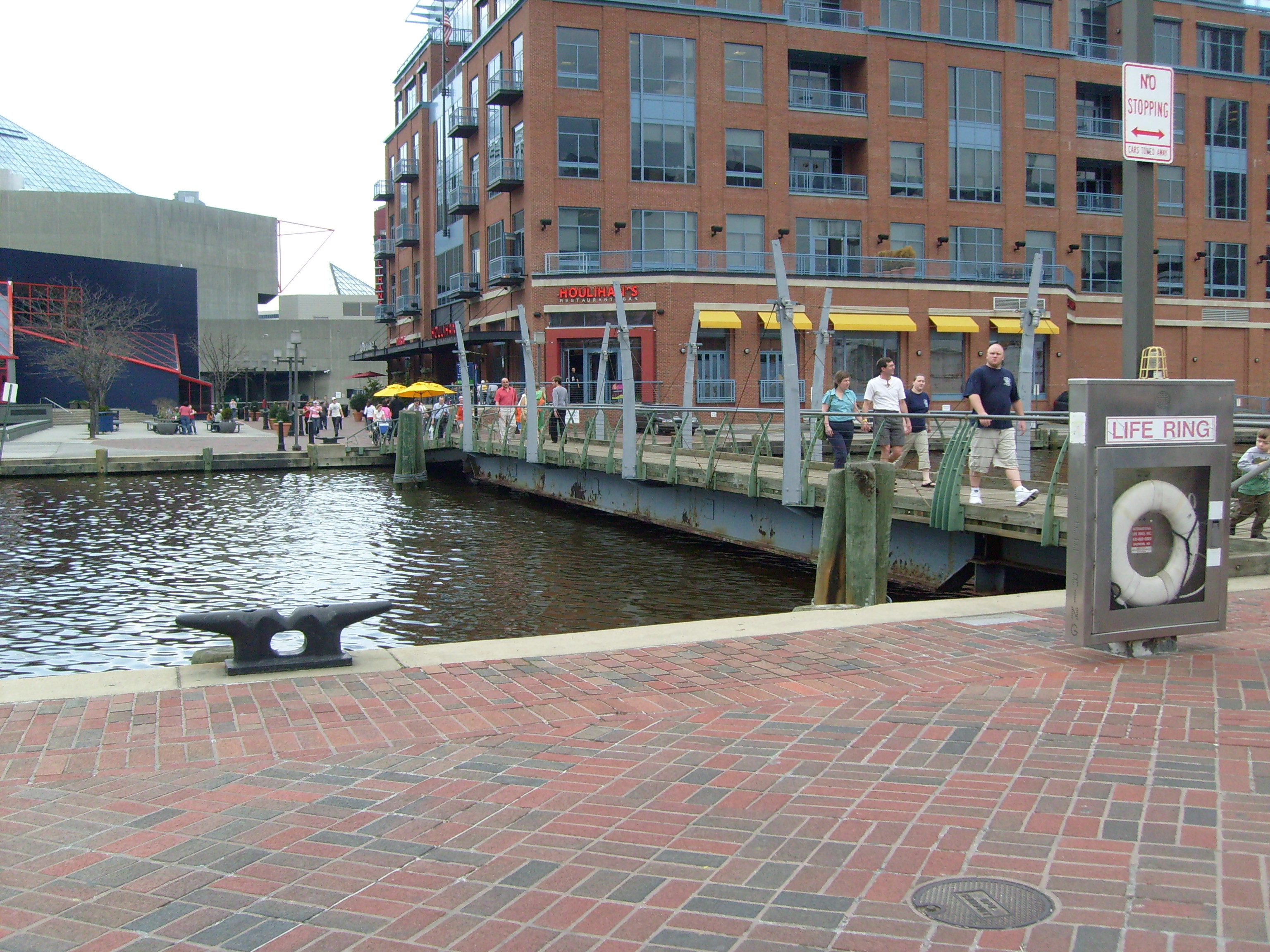

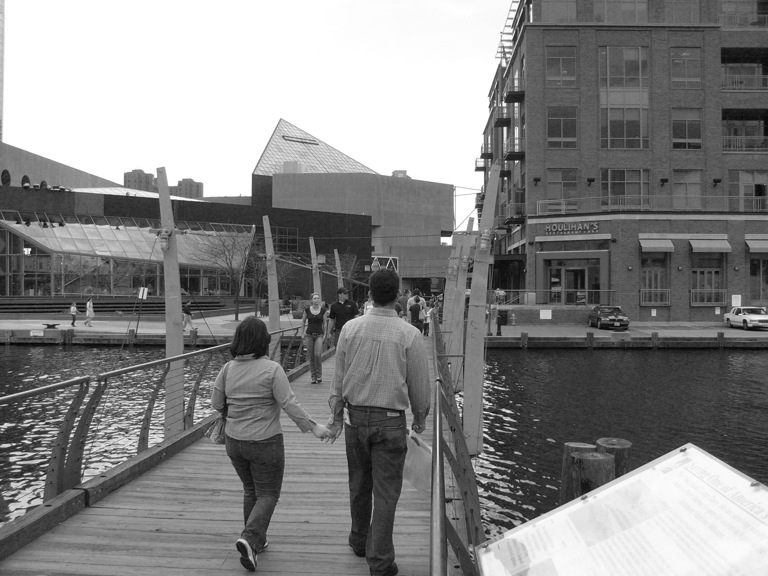

| Technical Details: | The majority of the forces in this bridge seem to be carried by the steel girder underneath the deck. The cable-stayed portion seems to only stiffen the deck and provides no clear load path to either pier. |
| Image Source(s): | Matt Sisinni |
| References: | N/A |
Other Images
 |
 |
