Proposed Work (Abridged from Proposal)
Water waves propagating over mud often lose energy, resulting in a decrease of wave height and possibly refraction and diffraction of the waves. The bottom of the Gulf of Mexico offshore of Louisiana has large areas of mud as do many other areas in the world.
Water waves interact with muddy bottoms in a variety of ways listed below. We will refer to these interactions by letter:
A. Direct wave interactions: the fluid mud motion is directly forced by the particle orbital velocity and pressure gradient of the surface waves.
B. Indirect wave interactions: the fluid mud motion is forced by nonlinear effects of the surface wavewave interactions.
C. Resonant wavewave interactions: (strong) resonant nonlinear interactions between surface waves and watermud interfacial waves. These generally occur over greater spatialtemporal scales with unique propagation characteristics.
D. Shear instability and turbulent mudflow interactions: Surface waves induce a shear flow instability at the lutocline, which has been observed in the field (Traykovski et al., 2000).
E. Largescale broadband mechanisms: the presence of broadband surface waves and multiscale interactions over varying wave/bottom conditions involving or combining the above mechanisms leads to features not predicted in the context of a single wave or wave combination or interaction mechanism.
The major objective of this study is to examine the various mechanisms of water wave dissipation over muds. We will use three approaches:
 Field measurements off the coast of western Louisiana to examine in detail the behavior of a mud bottom during wave events, providing the means to determine the operative damping mechanisms there
 Secondly, we will carry out laboratory experiments of waves over mud in two large wave tanks to isolate the mechanisms in greater detail: one tank is at the Johns Hopkins University and the other is the Super Tank at the Tainan Hydraulics Laboratory, Taiwan.
 Finally, theoretical analysis and numerical modeling will provide the input for determining dissipation algorithms to be added into a phaseresolved computational model based on high order spectral methods (SNOW, developed at MIT) and spectral forecast models, such as SWAN.
The Participants
Johns Hopkins University
Robert A. Dalrymple, Principal Investigator and Laboratory Team Leader
Lian Shen
Massachusetts Institute of Technology
Yuming Liu
Chiang C. Mei
Dick K.P. Yue, Theory Team Leader
Woods Hole Oceanographic Institution
Peter Traykovski
John Trowbridge, Field Team Leader
Boston College
Gail C. Kineke
Louisiana State University
Samuel J. Bentley
National Cheng Kung University
HwungHweng Hwung, Cooperating Laboratory Director, Tainan Hydraulics Laboratory
The Field Program
The objectives of the field measurement program are to quantify the characteristics and dynamics of the seabed and the dissipative wave bottom boundary layer and to determine the terms in a simplified wave energy budget:
where x and z are crossisobath and vertical coordinates, F_{x} is the crossisobath component of the wave energy flux, ρ is the density of the fluidsediment mixture, ε is the dissipation rate per unit mass, the vertical integral is over the thickness of the bottom boundary layer, and brackets denote an average over many wave periods. The measurements and analysis will focus on determining whether the dissipative wave bottom boundary layer is due to (i) an essentially laminar flow of a sedimentladen layer with enhanced viscous or elastic properties influenced by gravity waves that are coherent with the surface waves, as has been assumed in numerous theoretical studies and realized in laboratory experiments (Gade 1958; Dalrymple and Liu, 1978; MacPherson, 1980; Jiang and Zhao, 1989; Ng, 2000), or (ii) a turbulent flow of a sedimentstratified fluid with no wavelike motions other than smallscale KelvinHelmholtz instabilities, as has been observed in previous field studies (Trowbridge and Kineke, 1995; Traykovski et al., 2000). Our hypothesis is that (i) and (ii) are endmembers of a continuum of states that are realized by oceanic sedimentladen wavedriven flows, depending on the forcing and seabed conditions. The proposed field measurement program will combine, for the first time, quantitative measurements of wave evolution due to shoaling and dissipation with modern acoustical measurements of seabed processes at a muddy site on a continental shelf exposed to surface waves.
Our observations will include shipboard sampling and insitu timeseries measurements. The design of the timeseries observations is based on an approach in which measurements of waves are obtained at the seaward and landward edges of a control volume to determine the divergence of wave energy flux on the left side of equation (1); atmospheric measurements are obtained within the control volume to permit the estimation of the wind input and whitecapping terms in (1); and detailed measurements of nearbottom processes are obtained within the control volume to determine the nearbottom energy sink in (1) and to characterize and quantify the nearbottom dissipative processes. The bottom dissipation measurement array is designed to sample both long wavelength mud waves [(i) above] and turbulent instabilities on the mudwater interface [(ii) above] as measurements that only account for the long wavelength processes will alias the shorter scales. The purposes of the shipboard sampling are to obtain detailed information about the structure of the seabed from cores and to characterize the spatial variability of watercolumn processes and seabed characteristics in the region of the control volume, which will aid in the precise site selection as well as in data interpretation.
Our measurement site is on the inner shelf offshore of the Atchafalaya River (Figure 1), where dense muds have been observed annually during and after high discharges from the Atchafalaya and Mississippi Rivers, between approximately February and May (Rotondo and Bentley, 2003, 2004; Draut et al., 2005a, 2005b), and where intense dissipation of wave energy caused by seabed processes has been observed (Figure 2; see also Sheremet and Stone, 2003; Sheremet et al., 2004; Higgins, 2002). The timeseries measurement sites will be near existing oil platforms to provide protection from fishing activities, a strategy successfully used by Kineke to obtain the measurements described in the Higgins (2002) thesis (Figures 1 and 2). The offshore, central and onshore sites for the control volume occupied by the timeseries instrumentation will be at water depths of approximately 15, 10 and 5 m (Figure 1). The instrument deployments and recoveries and the shipboard measurements will be carried out with the Louisiana Universities Marine Consortium (LUMCON) Research Vessel Acadiana.

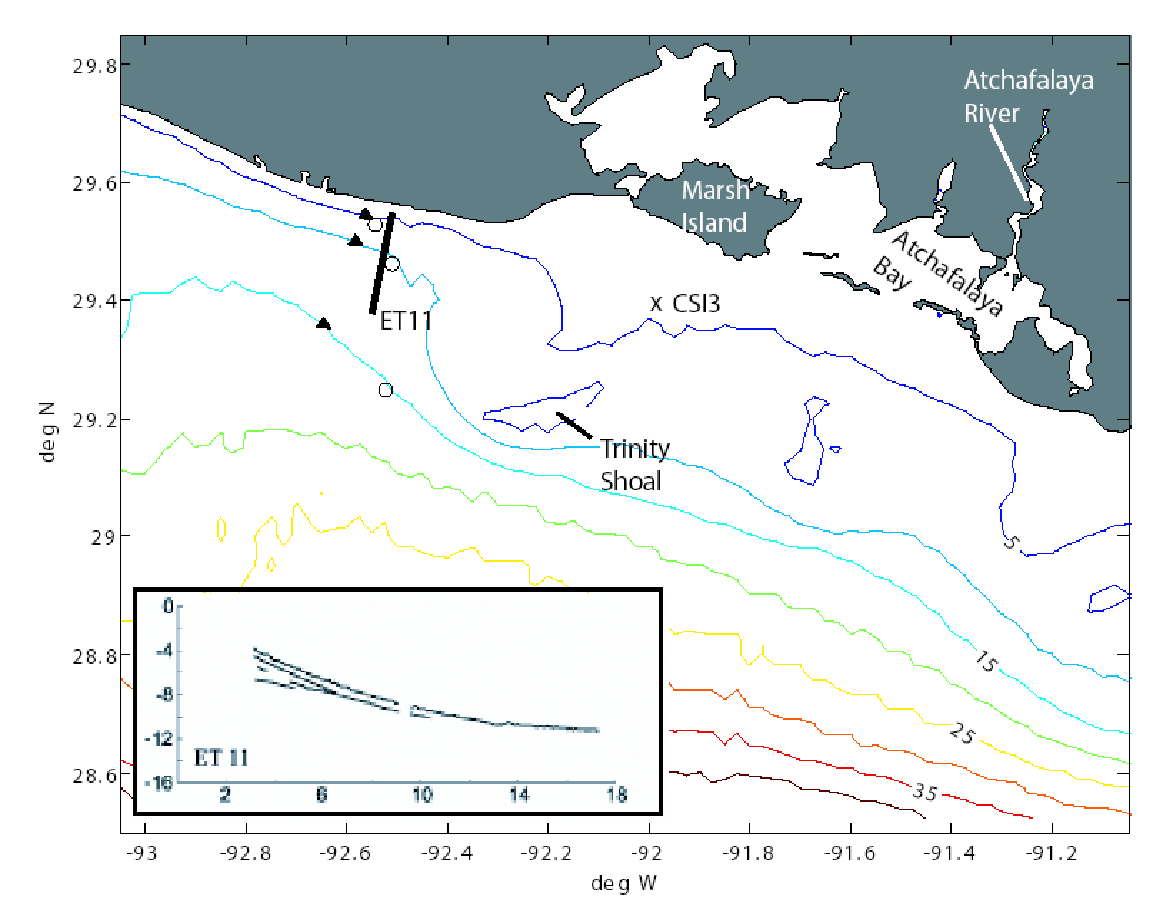

Figure 1. Site map of the Louisiana coast, showing locations of the 1999 wave measurements reported by Higgins (2002) (o), the location of a dualfrequency echosounder transect (solid line), the results of the echosounder transect (inset), Louisiana State University’s measurement station CSI3, and the locations of the wave and bottom boundary layer measurements proposed here (s). The echosounder results show an unconsolidated highporosity mud layer with a thickness of approximately 1 m overlying consolidated mud and extending seaward from a water depth of 4 m.
The field measurement schedule will be as follows. A pilot experiment will occur in February and March of 2007, and a main experiment will occur during February and March of 2008. The pilot experiment will identify the depths where fluid mud is found during energetic wave events, and the precise location of the main experiment will be chosen to sample these processes optimally. An experiment at a new site, chosen to quantify the effect of a different water depth or bottom type (e.g., ratio of mud to sand), will occur during February and March of 2010. Each measurement period will have a duration of two months, split into two onemonth deployments separated by a brief instrument turnaround for offloading data, cleaning sensors and replacing batteries. Shipboard sampling for periods of approximately four days will be conducted during every instrument deployment, turnaround, and recovery.
The atmospheric measurements at the central timeseries site (Figure 1) will be obtained from a surface buoy instrumented with an RM Young anemometer, which measures wind speed and direction; a Vaisala PTU2000 sensor, which measures atmospheric relative humidity, temperature, and pressure; and a Seabird temperature sensor, which will measure the nearsurface oceanic temperature. Timeseries measurements of waves at the landward and seaward ends of the control volume will be obtained by RDI 1200 kHz acoustic Doppler current profilers (ADCP) with waves enhancement, which will be mounted on trawlresistant bottom tripods. The ADCP measurements will provide estimates of the directional wave spectrum and the frequencydirection distribution of the wave energy flux. The landward and seaward tripods will have downward aimed acoustic backscatter profilers to determine thicknesses and concentrations of fluid mud layers at these sites.

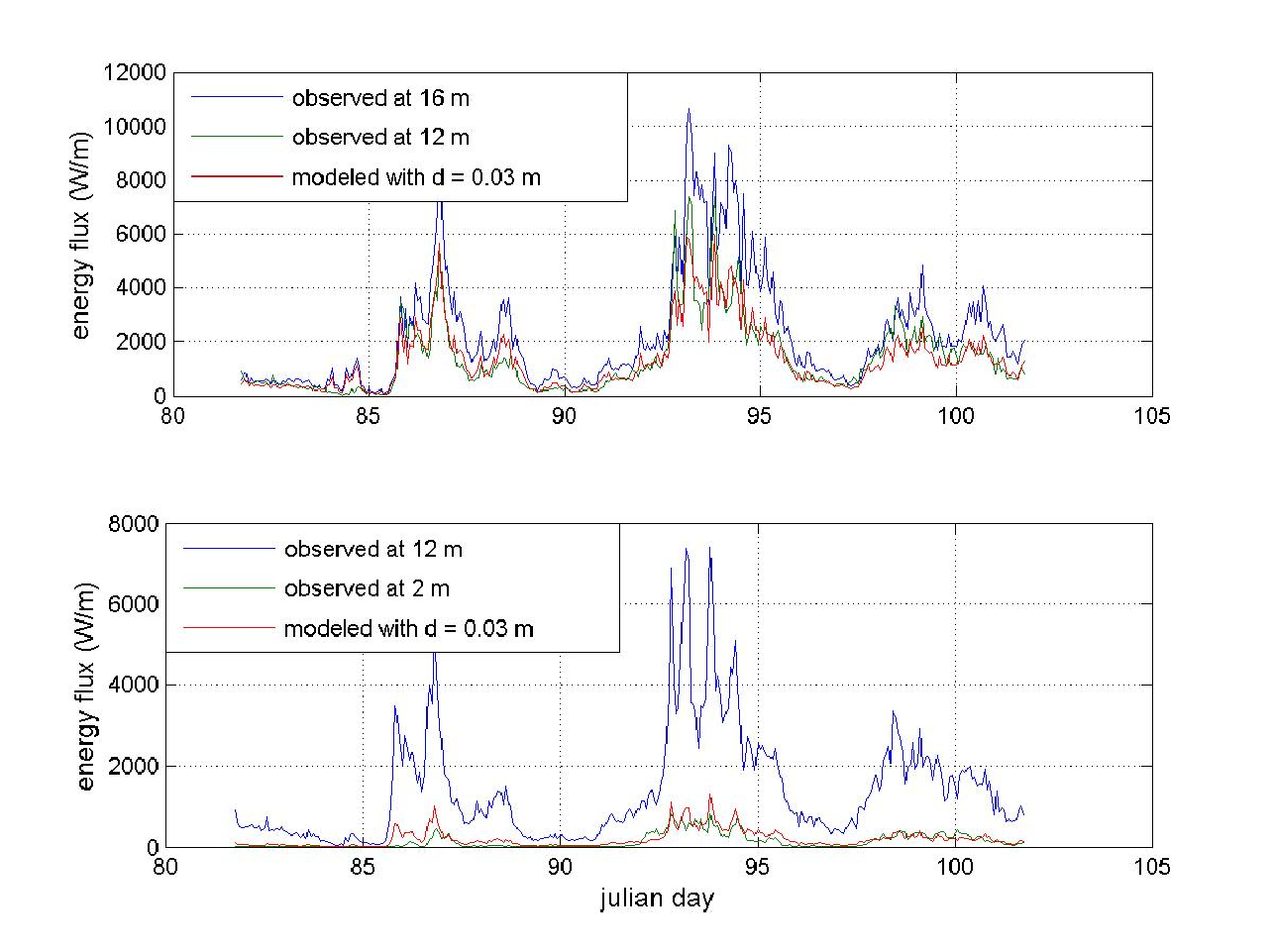

Figure 2. Onshore wave energy flux determined from measurements reported by Higgins (2002) and model calculations based on linear frictional shoaling theory (e.g. Dean and Dalrymple, 1991) with a twolayer viscous fluid model of the muddy seafloor (Dalrymple and Liu, 1978). The constant thickness d and viscosity of the mud layer in the model computations have been selected to optimize the agreement with observations. Calculations based on a quadratic drag law with optimized constant and large (0.1) wave friction factor f_{w} reproduce the measurements with equal success, as do calculations based on a viscoelastic model (MacPherson,1980) with optimized constant viscosity. Winds were persistently northward (toward shore), so that wave damping by adverse winds did not occur. Estimates of wind forcing and whitecapping based on simple models (Janssen, 2004) indicate that these processes had a nonnegligible but minor effect.

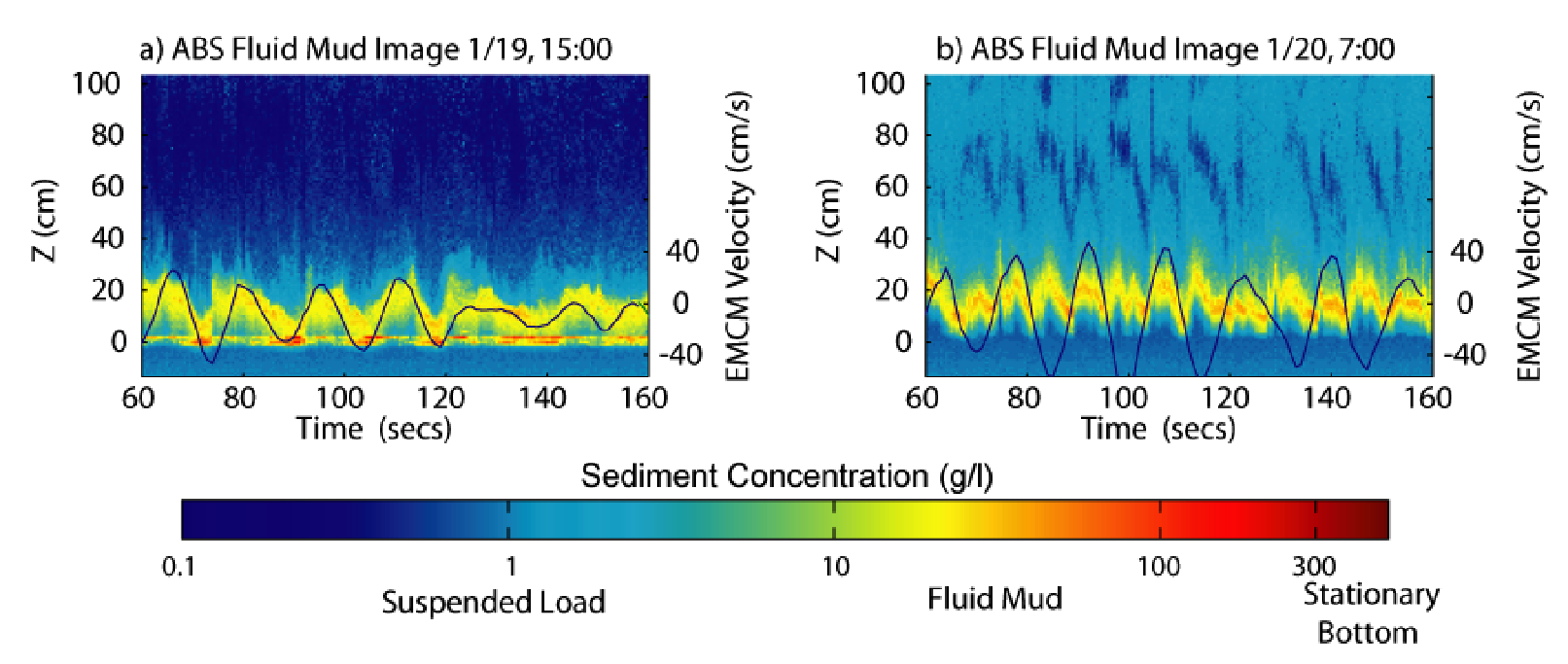

Figure 3. Waves on the lutocline (mudwater interface) as imaged by a 2.5 MHz acoustic backscatter sensor (ABS) during the Eel River Strataform program in 60 m water depth (Traykovski et al., 2000). Surface gravity wave velocities at 50 and 100 cm above bottom are shown as solid lines. The thick yellow region shows the lutocline. Wave spectra (not shown) indicate a single peak at a frequency of approximately 0.07 Hz. Spectra of lutocline elevation (not shown) show peaks at the wave frequency and harmonics at 2 and 3 times the wave frequency.
The design of the acoustical timeseries measurements of nearbottom processes within the control volume (Figure 1) is based on extensive experience with measurements over muddy seafloors on the Eel River shelf during the ONRfunded STRATAFORM program (Traykovski, 2000), during which a pronounced lutocline characterized by wavelike disturbances was clearly observed (Figure 3). The nearbottom measurements will be obtained from a quadrapod (Figure 4) instrumented with a horizontal array of vertically oriented pulsecoherent pencilbeam Doppler sonars. These sonars, which are similar to the Sontek "Dopbeam," are a new technology being developed at WHOI, which will provide improved measurements of echo intensity, low power requirements for batterypowered deployments, and lower cost than the Dopbeams. The array of vertically oriented Doppler sonars will measure the vertical structure of echo intensity and vertical velocity at multiple horizontal positions along vertical paths with ranges of approximately 1 m and resolution of approximately 0.01 m. The vertical sonars at each end of this array will be complemented by an obliquely oriented fanbeam Doppler receiver, which will produce a vertical profile of horizontal velocity measurements. The temporal sampling and horizontal spacing of the sonar array (Figure 4) is designed to resolve both the anticipated wavelengths of the interfacial instabilities (0.5 to 3 m based on a linear stability analysis), and the smalleramplitude mud waves, which are hypothesized to have the same length as the surface gravity waves (20 to 50 m). A rotating pencilbeam sonar will be used to measure the horizontal and temporal variability of lutocline elevation on horizontal scales of meters with spatial resolution of centimeters. Timeseries measurements of surface waves and waveinduced nearbottom velocities will be made at the quadrapod with an ADCP and acoustic Doppler velocimeters (Figure 4).
Figure 4. The suite of instrumentation to measure boundary layer processes associated with the dissipation of waves by a muddy seafloor. A coherent Doppler array will measure both mudwater interface turbulent instabilities and long wavelength mudwaves that are coherent with surface gravity waves. A gamma ray sourcedetector instrument and optical backscatter instruments will provide additional measurements of sediment concentration within the fluid mud layer. An ADCP and ADVs will measure the local forcing hydrodynamics for the nearbed sediment processes.
Shipboard measurements during deployment, turnaround and recovery cruises will include highresolution acoustic subbottom profiles with an Edgetech Chirp 424 towfish, which will image the horizontal and vertical structure of the fluid mud layers (Figure 1); watercolumn measurements with a profiling tripod (Sternberg et al., 1991), which will characterize properties of fluid muds and provide ground truth for calibration of acoustic and optical measurements; and boxcores, which will provide detailed information about the seafloor (Figure 5). Analysis of boxcores will include profiles with a gamma densitometer (developed by Bentley using a Cs137 source and a Canberra NaI gamma detector), which will provide 1cm resolution density measurements of the transition zone between the lutocline and the consolidated seabed; sediment grain size distribution (with a Micromeritics Sedigraph 5100); 210Pb, 7Be, and 137Cs radioisotopes (using Canberra LeGe gammadecay detectors), which will document and quantify sediment flux, reworking, and deposition (Sommerfield et al. 1999; Rotondo & Bentley 2003, 2004); and Xradiography, which will determine sedimentary bedding and structures. Analysis of boxcore samples will also include measurements of viscosity using a Couette viscometer with timedependent forcing (Isobe et al., 1992) and acoustical shear wave propagation speeds.
The analysis of the field measurements will focus on estimation of the terms in (1) and characterization and quantification of the nearbottom dissipative processes. Estimates of directional wave spectra will be obtained from the ADCP measurements by using standard RDI software, and estimates of the frequency distribution of the wave energy flux will be obtained from the wave spectra. The proposed atmospheric and nearsurface measurements are sufficient to provide estimates of atmospheric fluxes of momentum and buoyancy based on bulk formulae (e.g. Fairall et al., 2003) and to provide estimates of energy fluxes to waves due to wind input and whitecapping, respectively, based on empirical and semiempirical formulae (e.g. Janssen, 2004). The combination of acoustical and gammaray measurements will determine the thickness and concentration of the nearbottom sedimentladen layer. The horizontal array of coherent Doppler sonars will determine the horizontal and vertical structure of the sediment concentration and will permit identification and quantification of interfacial waves and KelvinHelmholtz instabilities. Horizontal velocities and sediment concentrations determined from the vertically and obliquely oriented sonar array will determine the vertical structure of the velocity within the sedimentladen bottom boundary layer and will permit inferences of shear stresses (based on the standard firstorder horizontal momentum equation for the bottom boundary layer), dissipation rates (the product of shear stress and rate of shear strain), and effective viscosity (the ratio of shear stress to rate of shear strain). Velocities measured by the sonars will provide inertialrange estimates of the dissipation rate of turbulent kinetic energy. Inferences of mechanical seafloor properties obtained from analysis of boxcores will permit quantitative evaluation of viscous and viscoelastic model computations. The analysis will be complemented by simulations of regional wave propagation based on the Simulating Waves Nearshore (SWAN) model, which will be implemented for the study site as part of the proposed project. The field results will be synthesized with results based on laboratory experiments and analytical and numerical models.
The Laboratory Program
Two wave tanks and one wave basin will be used in the laboratory studies. One tank is at Johns Hopkins University in the Coastal Engineering Laboratory. The second wave tank is the Super Tank of the Tainan Hydraulic Laboratory (THL) of the National Cheng Kung University, Taiwan, under the direction of Dr. H.H. Hwung, who is cooperating with this project. The THL also has a wave basin that they will fill with mud to examine diffractive effects of mud.
The wave tank at Johns Hopkins University will be used to carry out a series of experiment concerning wave damping over muds, with the view of examining the details of the mechanisms of damping. The wave tank is rather wide: 2.5 m, with a length of 18.3 m and a depth of 1.7 m. It has four hydraulicallyactuated piston wave paddles at one end. The paddles are individually computercontrolled, permitting the creation of directional sea states in the wave tank. A wave absorbing section will be added to the other end of the tank to remove waves with small reflection back into the test section. The tank has large glass panels at two locations along the tank. The bottom of the wave tank will be modified by adding a 10 m long section into which about 10 cm mud will be placed. False floor sections will be emplaced before and after the mud section as depth transitions.
We will use commercially available kaolinite muds, which have been used in laboratories for wave damping experiments previously (e.g., Isobe et al., 1992; Soltanpour et al., 2004). The mud characteristics will be varied by using different water contents. We will use two different muds: a very fluid mud, which behaves as a viscous liquid, and a more dense mud, which will not respond as readily to the wave forcing. In addition, a mud similar to that observed in the field will be tested. The scaling of the field situation will be done based on the type of mud response that occurs. For fluid muds, the dimensionless parameters between the field and the laboratory, from Dalrymple and Liu (1978), are the relative mud depth, d/h, where h is the water depth and d is the mud layer thickness, and the ratio of the fluid mud upper boundary layer thickness to the mud layer thickness: d (σ/2ν)0.5 , where ν is the mud viscosity. To model the waves, the Froude number should be the same as in model and prototype.
The rheology of the laboratory clay will be tested with a rotary shear meter as designed and used by Isobe et al. (1992). The advantage of the rotary shear meter is that it is a programmable Couette viscometer, allowing the testing of the mud with a variety of timedependent and oscillatory shear rates. This same instrument (built for this project) will be used in the field as well, so that the laboratory muds can replicate, as closely as possible, the field conditions. The rotary shear meter consists of a movable inner cylinder placed within a larger fixed outer cylinder, with the mud placed between the two cylinders. The inner cylinder then is rotated with oscillatory motions, or a combination of oscillatory and mean motions, simulating wave and current effects on the mud. Isobe et al. (1992) showed that there is a considerable hysteresis in the stress/strain rate for oscillatory forcing.
The first test series will examine direct wave damping (Type A) and the sediment response to monochromatic incident wave trains. Eight wireless capacitance wave gages will be located down the centerline of the tank (one prior to the test section and one afterthe remaining six within the section). These gages will be used to determine the wave height decay with distance. A digital video camera, shooting through the glass side wall, will permit the observation of the mud response in all the tests. However, Tsuruya and Nakano indicate that the mud wave height may vary across the width of the tank. Therefore, two additional capacitance gages will submerged and placed in the mud to determine the mud wave variation between the middle and the glass sidewall. Since these gages will be synchronized to the surface wave gages, the phase shift between the surface water waves and the mud waves will be determined. To determine the fluid velocities above the mud waves, a Nortek Vectrino 3D ADV will be used. During two of the tests (periods 2 and 5), the line array of Doppler sonars from the field quadrapod will be brought into the wave tank for a series of tests similar to the field situation. These tests will help to determine what is observed in both the laboratory and the field. Dyed mud (Sakakiyama and Bijker, 1989) will be placed into vertical profiles and sampled for mud mass transport, which occurs, like Stokes drift, because of the nonlinearities in the waveinduced motions of the sediment.
To obtain significant wavemud interaction, a reasonable amount of wave damping has to occur within the mud test section, which means the test section has to be several wavelengths long. In order that the field acoustical equipment fit within the wave tank, some of our tests will be carried out in a minimum of 0.6 m of water. We will be testing waves from 0.9 s period (7 waves in our test section) to about 2 s period (2.4 waves in test section); this leads to kh values of 3 to 0.8, ranging from deep to nearly shallow water waves. (Sakakiyama and Bijker had about 9 waves in their test section.) Shallower water depths will be used if more wave lengths are needed in the test section. We will also be varying the wave height to examine nonlinear effects on damping rates.
Analyses of these laboratory experiments will provide information about the mud behavior and the type of mechanism that applies to the type of mud used. Based on the experience of others, we will likely find that the damping rate of waves over the mud will depend on the frequency of the incident wave train as will the amplitude of the bottom response. Sakakiyama and Bijker (1989) show that bottom responses of up to 20 percent of the surface wave amplitude can occur. We also expect that a maximum energy loss will occur as a function of wave frequency.
As part of this series of monochromatic tests, we will be examining whether there is evidence of nonlinear mechanisms for wave damping in the laboratory (Type C). Foda (1989) indicates that the sidebands created by the BenjaminFeir instability of surface waves are more rapidly damped by a soft bed; this may not be observable in our short tank. Hill and Foda (1998) examine the case where a single surface wave train can create, through nonlinear interactions, two interfacial mud waves.
The second series of tests are to model the field situation and to use the field Doppler array in the laboratory. The waves will be driven with field observed spectra. The mud will have a viscosity similar to that found in the field. The advantage of the laboratory in this case is that we can see the bottom that the sonar system is detecting (not so in the field). We will be comparing the measurements made by lab instrumentation with that of the sonar.
A third set of experiments will be carried out examining the nonlinear damping of wave groups (Type B). The first runs will be with two collinear wave trains with very similar frequencies, which will create wave groups and their associated bound long wave. The wave trains will have periods chosen such that they are deep water waves not affected by the presence of a mud bottom. However the bound wave will be a longer wave that interacts with the bottom. It is the hypothesis of Sheremet and Stone (2003) that the bound long wave leads to the damping of deep water waves over muds. We will chose the frequency of the bound long wave such that it corresponds to a wave period that is optimally damped over the mud, thus maximizing the likelihood of observing this mechanism in the laboratory. A major observation of this test will be the damping rates of the short waves as a measure of the energy transfer into the bound long wave and then into the soil. A companion experiment will be carried out in the super tank at the THL to examine a different scenario and a different scale.
The fourth series of tests will involve directionality of the incident wave trains. The wide wave tank permits the creation of intersecting wave trains of given angle that propagate down the tank. We will be examining the occurrence of Hill and Foda's mechanism and other nonlinear mechanisms (Type C). The directionality of waves will be examined also in the nearshore basin at the THL. However, the purpose of those tests will be the diffractive effects of a mud patch on the wave directionality.
A series of experiments will be developed to examine the behavior of the lutocline. We hope to observe optically the occurrence of shear instability of the boundary layer (Type D). Measurements will examine the damping and the motion of the underlying mud. Finally, spectral runs will be made (Type E) to look at the damping mechanisms for a wide banded spectrum. During these tests, the field Doppler array will again be brought into the lab to make measurements.
Based on the laboratory experiments, we will obtain a measure of how effective each of the various mechanisms are in damping. This will help shape the theory and numerical modeling effort as they will be focusing on the most likely and the most effective damping mechanisms.
The Theoretical Program
We propose integrated comprehensive theoretical analysis and numerical modeling, closely coupled with the proposed field measurements and laboratory tests, to investigate each of the mechanisms we identify. The immediate objective is theoretical framework and understanding and canonical results; the intermediate objective is parameterization and modeling at multiscales; the final objective is effective largescale direct (phaseresolved) simulations and extensions of spectral wave prediction models, such as SWAN, for wave propagation over muddy seabeds.
A. Direct wave interactions: Damping mechanisms for fluid muds governed by a Newtonian shear stress are wellknown (e.g., Dalrymple and Liu, 1978) and are readily input into existing numerical models. We will investigate the direct interaction mechanisms theoretically in the context of inviscid water waves over a laminar flow Bingham mud layer, and Poincaré perturbation, (Mei, 1989; Mei, Stiassnie, and Yue, 2005, p.472ff).
The theoretical results above lead naturally to modeling by phasedresolved largescale simulations (SNOW), and, in particular, suggest the form of the modifications of the bottom dynamic and kinematic boundary conditions to capture the dissipative and dispersive effects of the mudlayer dynamics. Simulations will be obtained for select field and laboratory conditions to obtain the necessary quantitative crosscalibration and parameterization.
B. Indirect wave interactions: We consider the general nonlinear problem of surface wavewave interactions and their direct coupling with the mud flow. The mechanism of damping of setdown long waves by muddy seabed hypothesized by Sheremet et al. (2004) is a special case.
For modeling, indirect wave interactions can be incorporated in a manner similar to direct interactions. The key extension is the inclusion of higherorder nonlinear interactions in SNOW. To account for feedback to the short wave evolution, it is necessary to include wavewave interactions at least to third order.
C. Resonant wavewave interactions: Strong resonant interactions of surface waves and interfacial waves offer a possibly effective mechanism to transfer surface wave energy to interfacial mud layer waves. The resonant exchange among the (surfacemud) waves satisfies specific conditions on the wavelengths, frequencies and directions of these components as a function of the mud layer properties and might therefore be especially relevant in the context of remote detection and determination of seabed characteristics. Our theoretical treatment assumes discrete layers with constant properties and accounts for the coupled nonlinear dynamics of surface and internal waves in these layers. Initially, two layers are considered corresponding to respectively clear water (inviscid irrotational) and fluid mud (nonNewtonian). The multiplescale analysis is an extension of irrotational waves for this problem where triad resonances obtain at second order (e.g. Hill and Foda, 1998; Jamali et al., 2003). The dissipation effect of the mud layer may now be considered, for example, using equivalent (Newtonian) viscosity. In the more general case, the analysis may be generalized to multiple (mud) layers involving different properties (such as concentration).
The resonant interactions above can be modeled in an extension of SNOW to the case involving (multiple) internal layers. For inviscid irrotational flow in stratified water, this extension has recently been obtained (Alam, Liu and Yue, 2005) in two and threedimensions to arbitrary high order. The inclusion of viscous dispersion and dissipation effects within the submarine layers requires special modeling of interfacial boundary terms which might be linear (with constant or variable coefficients) or nonlinear. The key to the modeling effort is the availability of field data for relatively long distances (or time) under conditions (e.g. relatively thick mud layer depth with low mud concentration) where strong surfacemud resonant interaction obtains.
D. Shear unstable and turbulent mudflow interactions: We analyze theoretically the shear flow instability at the watermud interface assuming a Bingham mud fluid modeled by power law. Linearized instability is analyzed first taking into account the nonNewtonian behavior of fluid mud subject to appropriate bottom and mudwater interface boundary conditions, and the resulting OrrSommerfeld eigenvalue problem is solved numerically (Shen, Triantafyllou and Yue, 2000; Shen, Zhang and Yue, 2002).
The shear flow instability and subsequent potential development into turbulent flow will also be investigated for small scale (order of water wavelength) and relatively low effective Reynolds numbers (O(10^{3})) using direct numerical simulations (DNS). These DNS are built on existing capabilities developed for turbulent flowmoving bottom problems (Shen et al., 1999; Shen et al., 2003). For larger scale and higher Reynolds numbers for fully developed turbulent mud flow, a largeeddy simulation (LES) approach is adapted, in which subgrid scale (SGS) terms are modeled based on theoretical results and DNS (cf. Shen and Yue, 2001). The key development in both DNS and LES is the numerical treatment of viscoplasticity. In this study we employ a viscosity regularization or smoothing method (Glowinski, 1983; Frigaard and Nouar, 2005). Guided by tank and field data, different regularizing functions (Bercovier and Engleman, 1980; Pananastasiou, 1987; Allouche, Frigaard, and Sona, 2000) are systematically tested and evaluated.
Wave interactions with underlying turbulent mud flow can be modeled in SNOW in the framework of two interacting fluid layers. The irrotational surface wave motion is coupled, across a matching/patching boundary, to an underlying turbulent mudlayer. For large scales, the latter is described using largewave simulation (LWS), in which the full equations are filtered at subsurfacewavelength scales. The resulting subwavemodescale stresses require special closure modeling based on laboratory and field measurements with guidance from DNS and LES.
E. Largescale broadband mechanisms: The general problem of practical interest involves broadband waves propagating over complex/varying muddy seabeds of length O(10) km or more. The field measurement proposed is indeed a problem of this nature and scale. The important requirement is a simulation prediction that incorporates the above mechanisms and combinations of the mechanisms involving multiple wave components and interaction scales. For example, long time evolution involving multiple broadband resonant wave triads/quartets and direct and indirect forcing cannot be predicted based on individual mechanisms and/or narrowband results. These effects must be obtained using largescale direct wave simulation such as SNOW that includes modeling of all of the mechanisms.
These largescale simulations can be used to obtain direct comparisons with proposed field measurements. Using direct simulation MonteCarlo, we obtain also datasets that provide information on the statistical characteristics of surface wave dissipation as a function of mud layer variations and properties. These results are essential for the development of modeling of mud bottom dissipation effects for wave spectral prediction tools such as SWAN.
